Run an Integration

Execute and manage your configured integrations.

A run is what makes the model current. Between runs, the architecture Catio reasons against is the architecture as of the last successful run — so a Blueprint generated after a significant infrastructure change, but before the next run, is grounded in a system that no longer exists.

Run an integration on demand after a change you know matters, rather than waiting for the schedule, when you are about to generate or validate a design.

Run an integration now

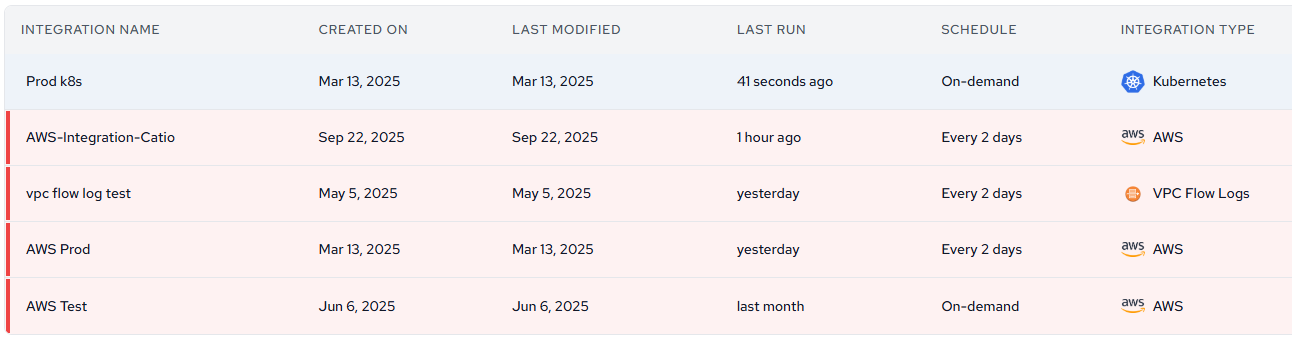

  1. Go to Integrations under General in the left sidebar. The list shows each integration's type, when it was created and last modified, its last run, and its schedule.

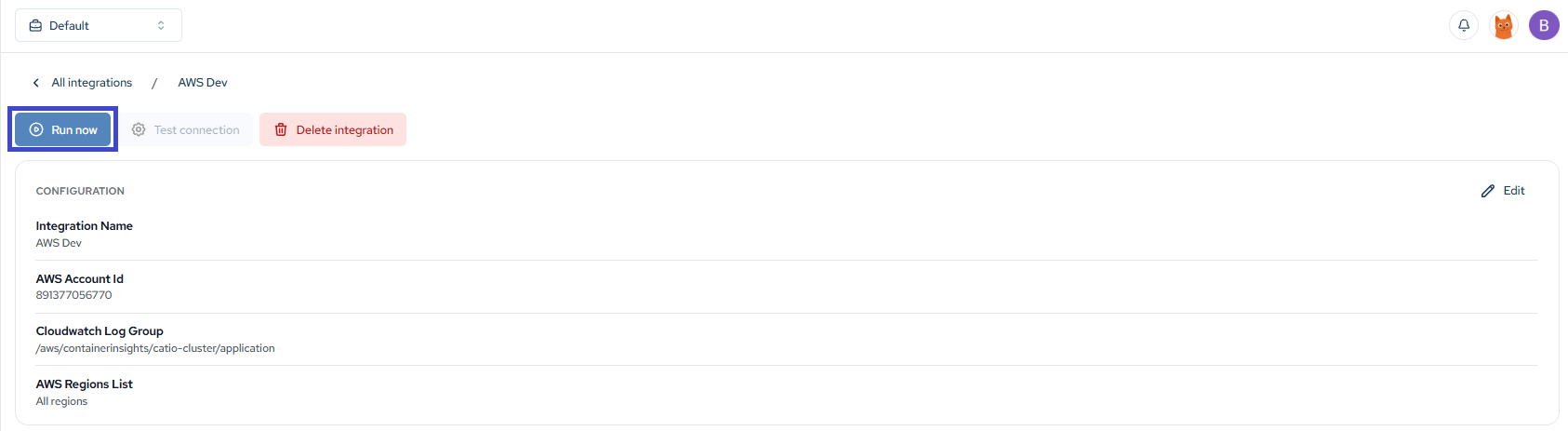

  2. Click Run now on the integration's row, or open the integration and click Run now at the top of its page.

The run shows as running straight away.

Check how runs went

Open the integration and select the History tab. It reports on the last 10 runs:

  • Summary: success rate, number of failures, median and 95th percentile duration, and the last failure.
  • Duration per run and Discovered per run: how long each run took, and how many components and relationships it found.
  • Runs: each run's start time, outcome, duration, components, relationships, and errors. Expand a run to see its messages. Use Load more for older runs.

If the integration's last run failed, the Settings tab shows the error under Error details. See Integration Troubleshooting.
